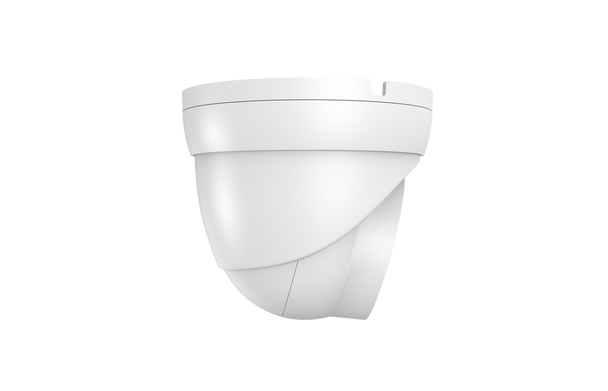

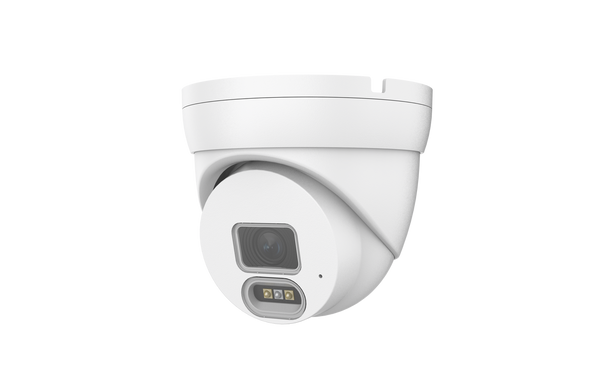

AIBASE 4K 8MP 24/7 Full-Color Perimeter Protection IP Camera
Elevate your surveillance with the AIBASE 8MP Full-Color IP Camera—designed for professionals who demand uncompromising clarity and reliability. With ultra-high 4K resolution, every frame captures exceptional detail, allowing for accurate identification of faces, license plates, and critical events. Powered by advanced AI perimeter protection, it intelligently detects and distinguishes between humans and vehicles, minimizing false alarms and maximizing security efficiency. The full-color night vision delivers vivid imagery around the clock, even in near-darkness, while its rugged, NDAA-compliant design ensures long-term performance in any environment. Perfect for high-security commercial and residential installations.
- Built-in Microphone records audio data
- Support SD Card up to 256GB for local storage
- Get alerts to your app when the camera detects perimeter intrusion events
- IP67 all-weather protection and full metal housing
AIBASE 8MP (4K) Full-Color Perimeter Protection IP Camera – Spec Sheet
| Design |
| Video |
| Imaging Device | 1/2.7" |
|---|
| Effective Pixels | 8MP 3840(H)×2160(V) |
|---|
| Scanning System | Progressive CMOS |
|---|
| Min. Illumination | Color 0.004lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON |
|---|
| Lens Type |
| Focal Length (Zoom Ratio) | 2.8 mm |
|---|
| Max. Aperture Ratio | F No. 1.6 |
|---|
| Angular Field of View | Horizontal:106°, Vertical:57°, Diagonal: 127° |
|---|
| Min. Object Distance | 1.8m |
|---|
| Lens Type | Fixed (M12) |
|---|
| Operational |
| IR LED | 1 |
|---|
| WarmLight | 2 |
|---|
| IR Viewable Length | Up to 30m |
|---|
| WarmLight Viewable Length | Up to 25m |
|---|
| Type of complementary light | Default warm light, switchable infrared light |
|---|
| Motion Detection | Off/On (8 Level) |
|---|
| Wide Dynamic Range | DWDR |
|---|
| Digital Noise Reduction | 3D DNR |
|---|
| Image Setting | Full Color Mode / Day & Night Mode / Smart Illumination |
|---|
| White Balance | Auto / Manual |
|---|
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
|---|
| On-Board Storage | Micro SD slot, up to 256GB |
|---|
| Alarm |
| Audio | Built-in microphone |
|---|
| Hardware Reset | Yes |
|---|
| Smart Feature | SMD (Pedestrian & Vehicle) / Line Crossing / Intrusion / Region Entrance / Region Exiting |
|---|
| Network |
| Ethernet | RJ45(10/100BASE-T) |
|---|
| Video Compression Format | H.265 / H.264 |
|---|
| Resolution | Main Stream@25fps
8MP(3840×2160)
Sub Stream@25fps
VGA(640×480) |
|---|
| Video Quality Adjustment | 128Kbps ~ 6Mbps |
|---|
| Bitrate control method | CBR / VBR |
|---|
| IP | IPv4 |
|---|
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS |
|---|
| Security | Authenticated username & password; Complex password support |
|---|
| Application Programming Interface | ONVIF |
|---|
| Web Viewer | IE10/11 |
|---|
| Environmental |
| Operating Conditions | -35～+60°C / less than 90% RH |
|---|
| Ingress Protection | IP67 |
|---|
| Electrical |
| Input Voltage / Current | DC12V / PoE (IEEE802.3af) |
|---|
| Power Consumption | DC12V: max 5.5W; PoE(48V): max 6.5W |
|---|
| Mechanical |
| Material | Metal |
|---|
